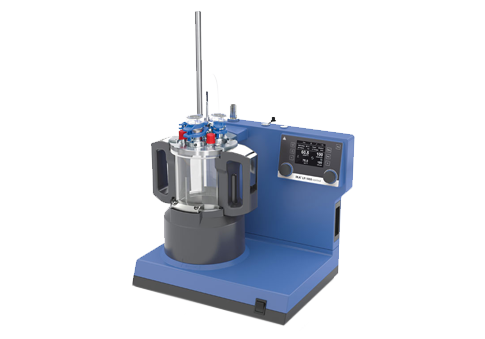

The LR 1000 control is a cost efficient, modular laboratory reactor designed for optimizing chemical reaction processes as well as for mixing, dispersing and homogenization applications at the laboratory scale. The system can

be adapted quickly and easily for a wide range of applications and specific requirements. The reactor is especially

designed for the unique applications requirements that define the cosmetic and pharmaceutical industries. The

temperature of the medium can be as high as 120 ºC. The temperature of the heating source, which is located at the

bottom of the vessel, is controlled accordingly to reach the set temperature inside the medium. A PT 100.5

temperature sensor and the corresponding receptacle LR 1000.61 for the lid are included with this package.

Prominent features of the LR 1000 control system are the integrated pH sensor connection and the display interface.

The latter allows for the display of all process-relevant data onto a PC, save data storage and control of the reactor.

The software (accessory) allows for further adaptation of the overall system and processes.

Metals in contact with medium: stainless steel ( ALSI 316 L), FFKM, PTFE, PEEK, borosilicate glass 3.3

Large easy to read TFT display for better image quality and easy navigation

Integrated weighing funktion

Torque trend measurement indicates changes in product viscosity

Integrated pH sensor connection

RS 232 and USB interface to operate the unit with the laboratory software labworldsoft

Standard joint fittings on the lid: 1x NS 29, 3x NS 14, 2 x GL 14 for flexible adaptation of further equipment

Expandable for use with the ULTRA- TURRAX® T 25 digital (Accessory)

Vacuum valve included with delivery

Anchor stirrer with PTFE-scrapers available (Accessory)

Connections to attach a cooling source to the back of the unit

Manual adjustable safety circuit

Integrated safety shutdown when vessel or lid is removed from the base
